Wedge Wire Screen Panel for Filtration and Screening

Wedge wire screen panel is a high-performance screening panel made from V-shaped wedge wire and support rods, featuring superior strength and wear resistance, capable of effectively handling various solid particles and liquids.

The unique design provides exceptional filtration performance and durability, suitable for a variety of harsh working environments. It is widely used in industries such as mining, chemical engineering, food processing, and water treatment.

Two wedge wire screen panels stacked in an interleaved manner

Specifications

Materials: Stainless steel 304/316L/321/310S, Duplex steel 2205/2507, Hastelloy, Titanium alloy, etc.
Surface profile type: Triangular (V-shaped, wedge) wires.
Support profile type: Triangular (V-shaped, wedge), round rod, flat bar, water-drop, and square wire.
Slot size: 0.02 mm – 10 mm.
Pitch: 10 mm – 100 mm.
Surface profile wire length: Up to 3,000 mm.
Support profile wire length: Up to 4,000 mm.

Advantage

Provides precise gap spacing, reduces impurity accumulation, and ensures smooth passage of fluids or particles.
Made from high-quality stainless steel or alloys, featuring high pressure resistance, corrosion resistance, and wear resistance, suitable for harsh environments.
Precise opening sizes ensure effective separation of solids and liquids, with high filtration efficiency and low flow loss.
The unique wedge-shaped structure facilitates backwashing, maintaining long-term operational performance and reducing downtime.
Customizable specifications, opening sizes, lengths, and diameters are available to fit various industrial equipment and application scenarios.
Reduces equipment failure rates, lowers maintenance frequency and replacement costs, providing long-term economic benefits.

Applications

Water treatment industry
- Groundwater well filter
- Wastewater treatment system
- Desalination equipment and cooling tower inlet filtration
Oil and gas industry
- Well screen pipes
- Sand control screen pipes and fluid filters
Food and beverage industry
- Beer Brewing Filter
- Separation and Filtration of Syrups, Juices, and Other Liquids
Mining and Mineral Processing
- Sand and Gravel Separation and Slurry Dewatering
- Coal Mining Industry Screening
Chemical and Pharmaceutical Industries
- High Corrosive Liquid Filtration
- Separation of Powders and Liquid Mixtures
Power Generation and Energy Industry
- Condenser Protection Filtration
- Nuclear Power Plant Cooling Water System
Agricultural Irrigation Industry
- Filtration Equipment in Farmland Irrigation Systems

Gallery

wedge wire screen panels secured with straps on two wooden sticks

Bundled packaging

Neatly stacked multiple wedge wire screen panels in the iron box

Iron box packaging

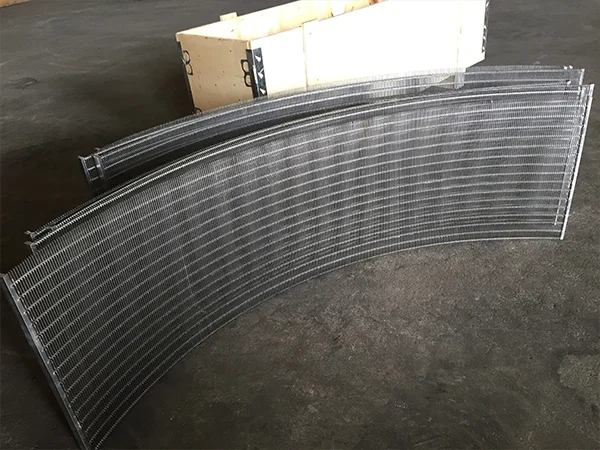

The wedge wire screen panels bent after finishing are placed next to the wooden box for packing

Wooden box packaging
